COMPASS™ Disposable Needle Guide Replacement Kits
Summary
Reference：10612402, 10613302, 10613402, 10613502, 10613602, 10613702
For Use With：Ultra-PRO Ⅱ Needle Guide
Order nowYou can contact us at any time。
+86-512-66554498
Product Summary

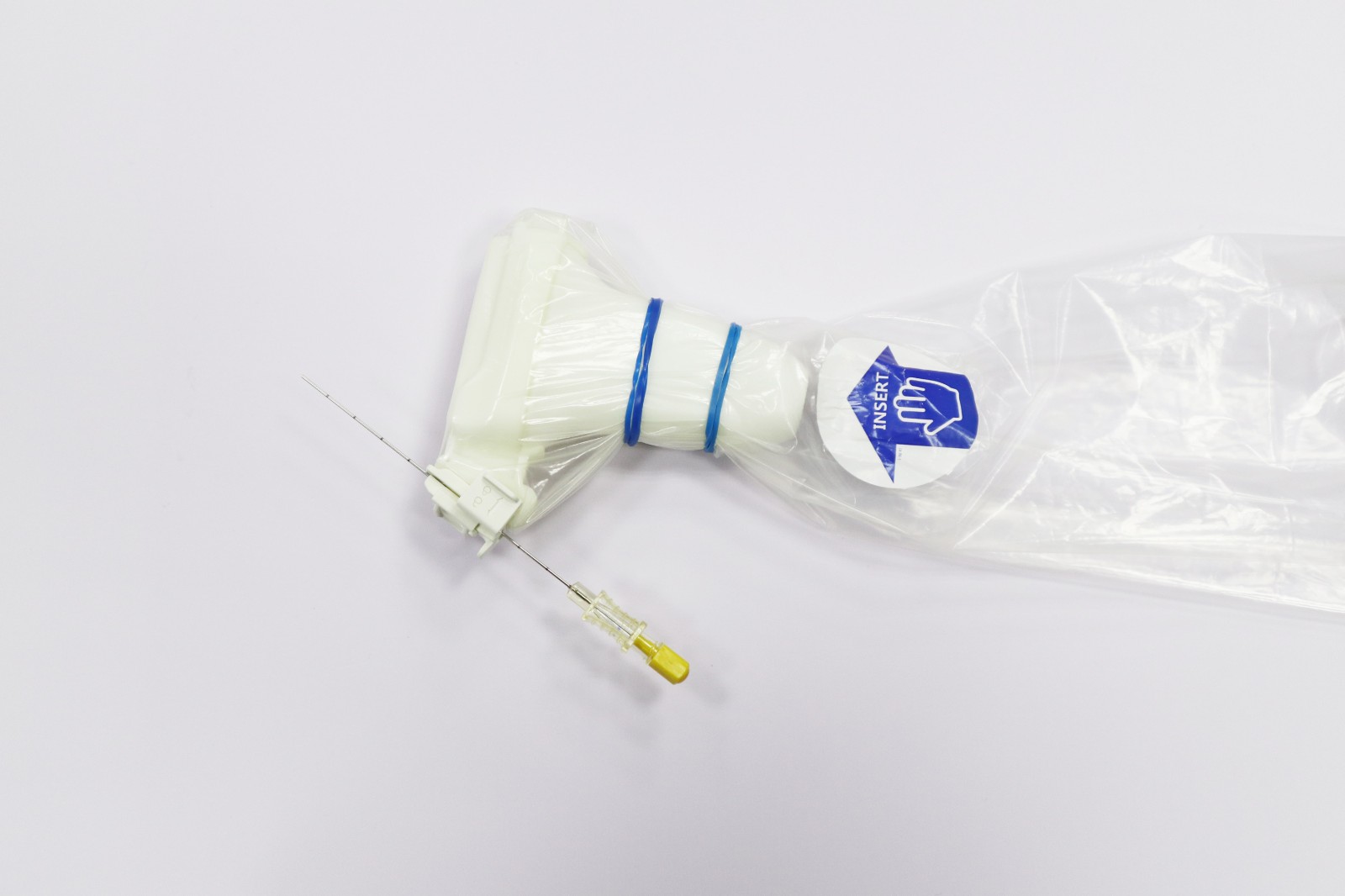

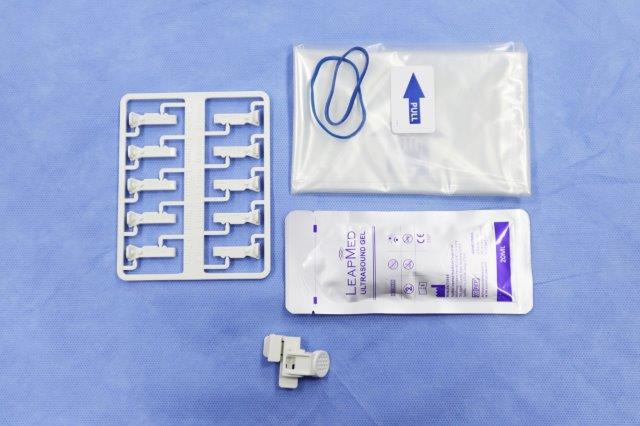

Affordable COMPASS™ Refill Kit (Ultra-Pro II™ Disposable Replacement Kits)matches all models of Ultra-Pro II™ series (totally 107 models), which includes disposable guide, detachable tubes, transducer cover, gel packet and colored elastic bands.

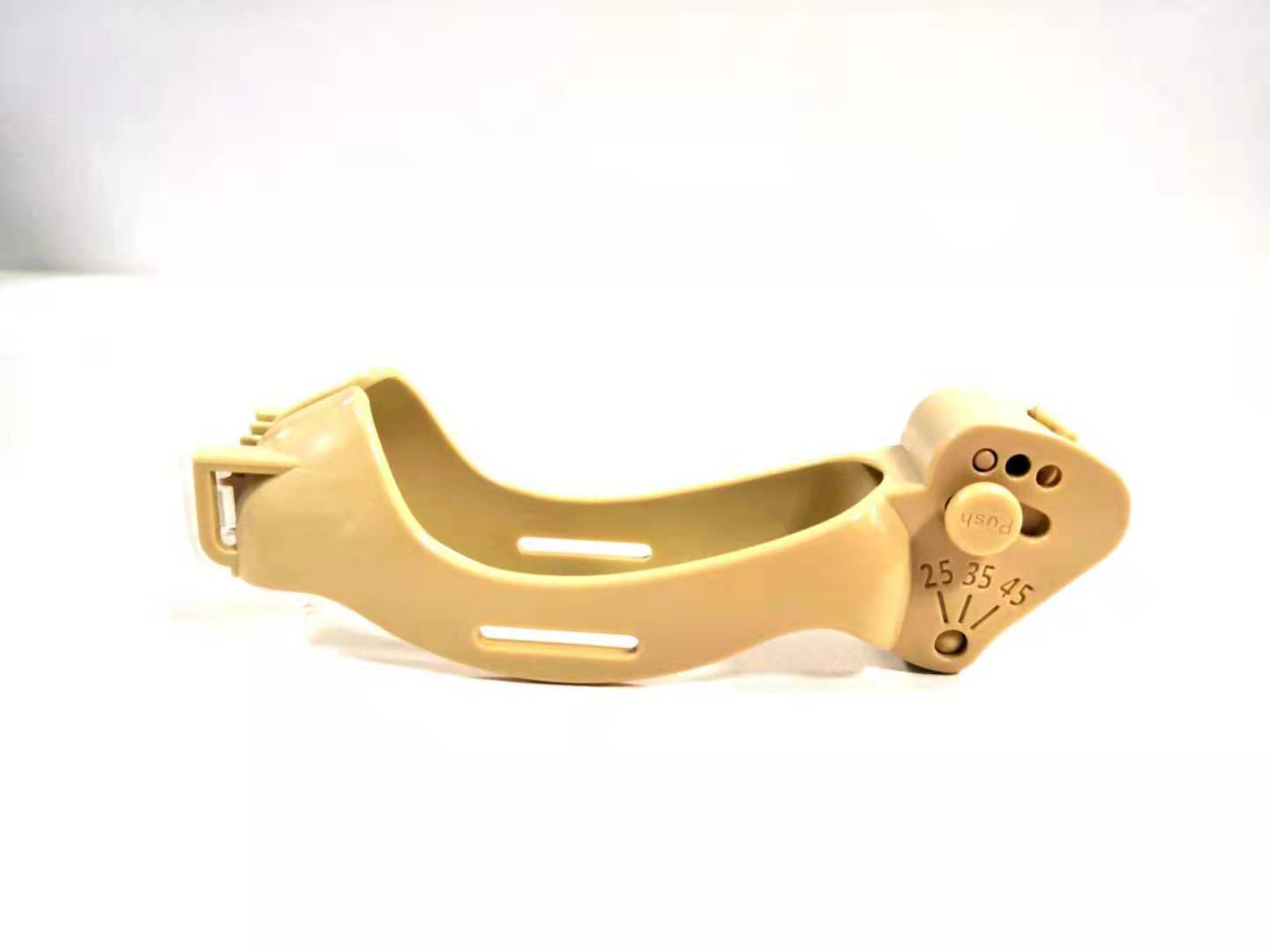

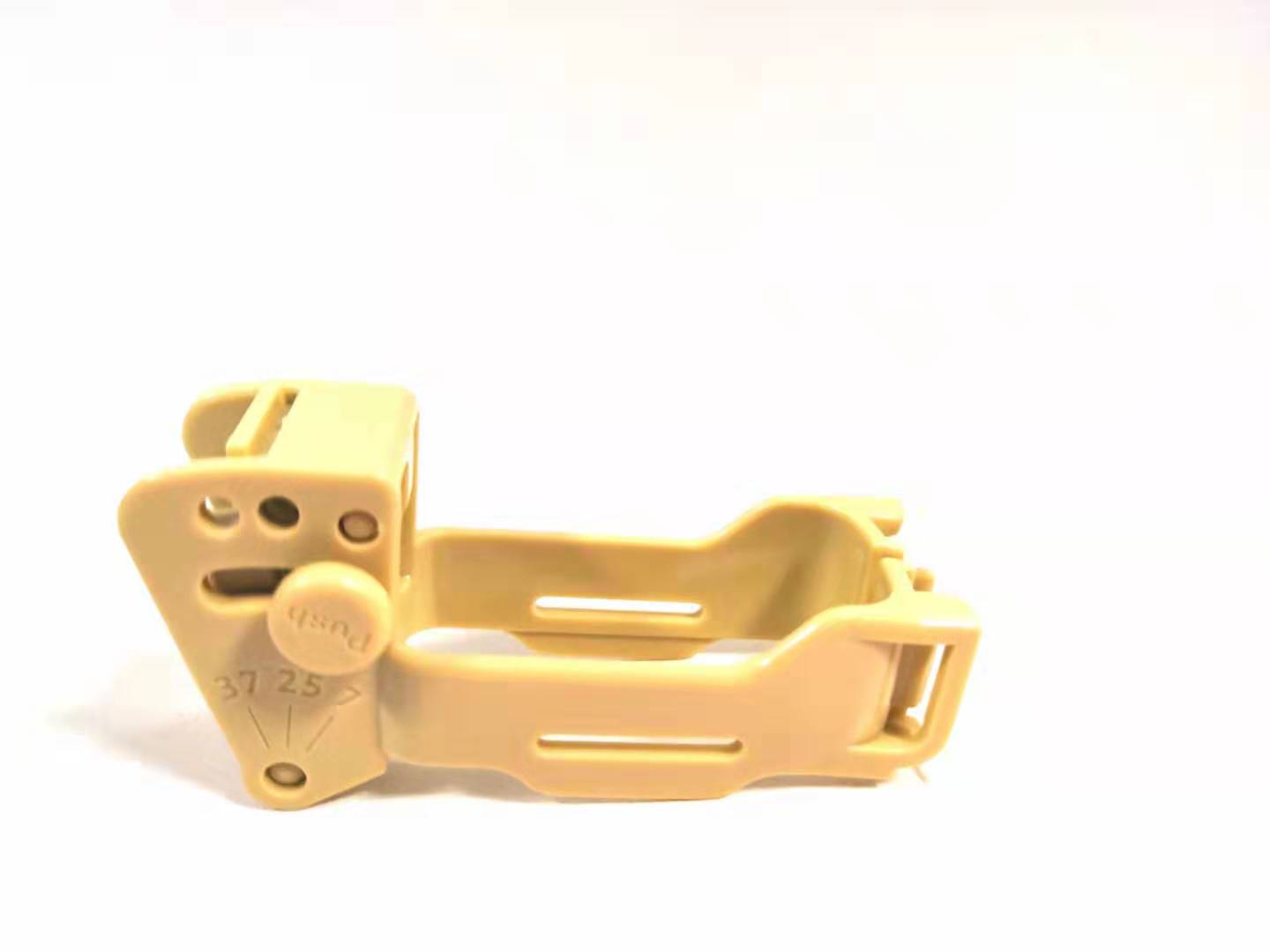

The compass needle guide features a large tab for improving quick-release function, allowing easy detachment of the needle from the probe. Easy-to-read gauge size on the tubes make it simple to identify and alter gauge size in a darkened ultrasound suite. The guide features a large funnel for tube insertion and will accept a range of sizes including: 8.5F, 14-23GA (19 GA not available).
• Large funnel design for easy and accurate needle insert
• Round fast release panel for quick needle release
• Arrows and marks to assist install and dismantle
• Extra locker system to assist the needle stability
Product Advantage
- Angle Type： Guideline-Angle
- Available Angle：1
- Tube Type： /
- Needle Type：14G-23G, 8.5F
| Reference | Model | Description | Box Qty |
|---|---|---|---|
| 10612402 | LPUBKG82 | Sterile Compass™ with 14*150cm probe cover, 20 ml gel, 2 bands | 24 |
| 10613302 | LPUBKG82 | Sterile Compass™ with 14*90cm probe cover, 20 ml gel, 2 bands | 24 |
| 10613402 | LPUBKG82 | Sterile Compass™ with 14*61cm probe cover, 20 ml gel, 2 bands | 24 |
| 10613502 | LPUBKG82 | Sterile Compass™ with 18*90cm probe cover, 20 ml gel, 2 bands | 24 |
| 10613602 | LPUBKG82 | Sterile Compass™ with 18*150cm probe cover, 20 ml gel, 2 bands | 24 |
| 10613702 | LPUBKG82 | Sterile Compass™ with 14*120cm probe cover, 20 ml gel, 2 bands | 24 |
| 10211302 | LPGUP | Sterile Compass™ needle guide | 10 |
