Ultrasound Needle Guide Biopsy Kits with Common Ultrasonic Brands

Summary

Reference：10610402-10610902

For Use With：Ultrasonic brands: GE, Sonosite, Mindray, Philips, etc

Order now

Need help？
You can contact us at any time。
+86-512-66554498

Product Summary

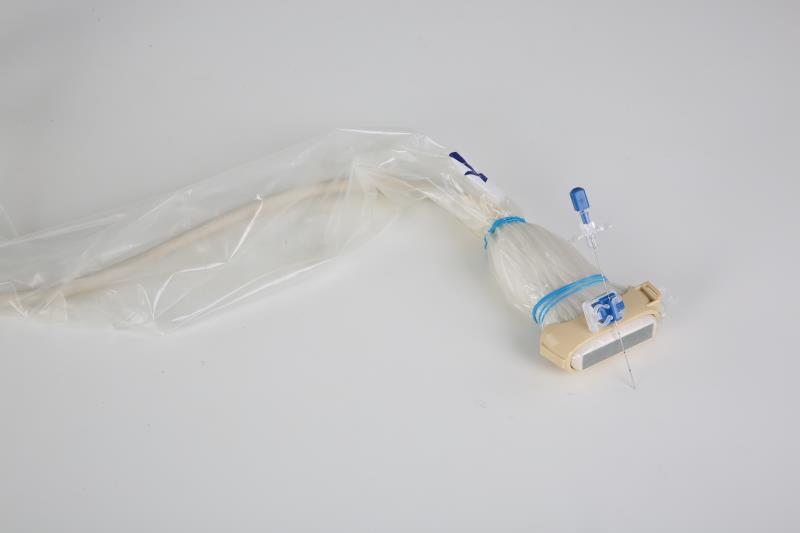

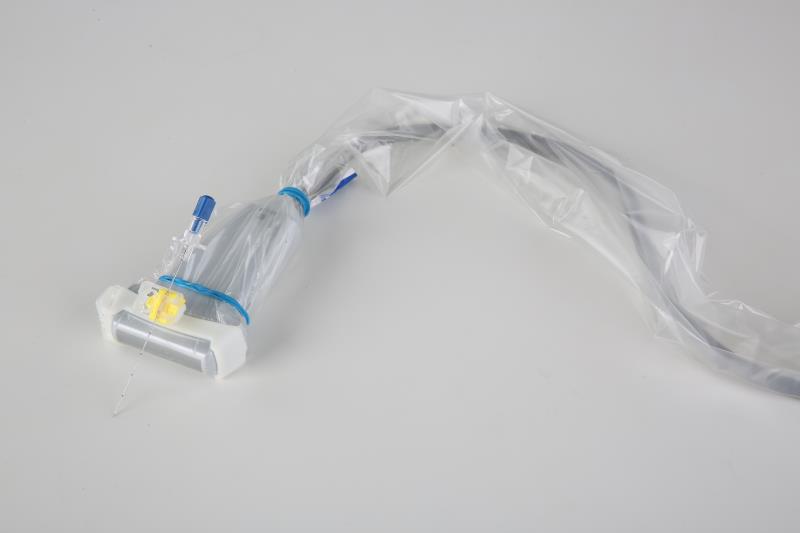

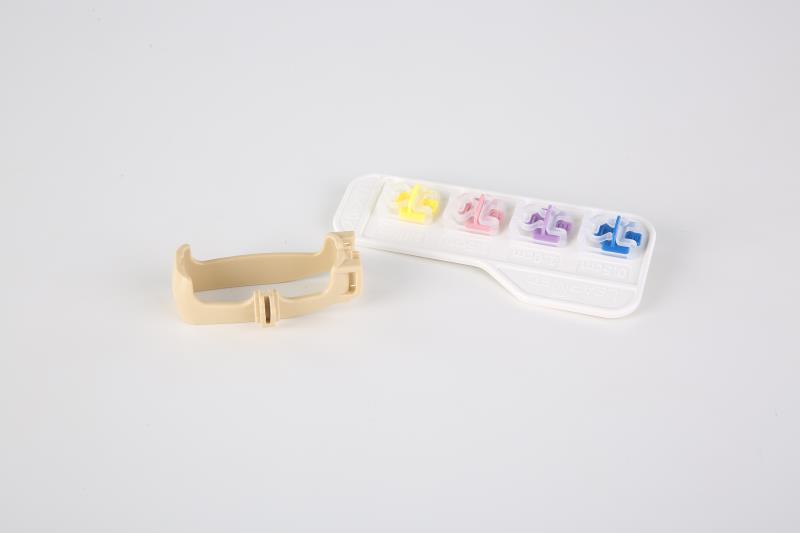

Leapmed Disposable Biopsy Kit is packaged sterile and single-use only, which includes disposable guide, detachable tubes,transducer cover(PU,14*150cm), gel packet and colored elastic bands. The disposable guide offers surgeons a broad range of free angles for needle insertion, expecially for superficial punctures. The tube characters quick-release function allowing easy separation of the needle from the transducer. Easy-to-read gauge sizes on the tube make it simple to identify and alter gauge sizes. The guide features a wide open for instrument insertion and will accept a full range of sizes including: 18G-21G (0.5/1.0/1.5/2.0/2.5/3.0/3.5/4.0).

Ultrasound Needle Guide Kits for Vascular Assess
Compatible with Common Ultrasonic Brands
Out Of Plane Needle Guide Kits
Kits contain: Needle Guides, PU cover(14*150cm), 20ml Gel and 2 bands

Out-of-Plane Needle Guide Kits
Benefits:
> Wholly single-use kits solution reduces the risk of cross-contamination
>"Quick-Release" feature for soft detachment of needle delivers excellent experience
> 8 different depths with various colors improving recognition capability
> Funnel design to aid in needle insertion
> PU Transducer Cover improves infection controls rates and easy application

Product Advantage

Angle Type： Out-of-plane
Available Angle：1
Tube Type： 8
Needle Type：18G-21G ( Depths: 0.5/1.0/1.5/2.0/2.5/3.0/3.5/4.0 cm )

Reference	Model	Description	Box Qty
10610402	LPUBKG63	18G GE 11L,11L-D,12L-RS,12L-SC,L4-12t-RS,L6-12-RS	12
10610502	LPUBKG64	20-21G GE 11L,11L-D,12L-RS,12L-SC,L4-12t-RS,L6-12-RS	12
10610602	LPUBKG65	18G SonoSite HFL38, HFL38x, L38, L38e and L38x	12
10610702	LPUBKG66	20-21G SonoSite HFL38, HFL38x, L38, L38e and L38x	12
10605402	LPUBKG44	18G SonoSite L25, L25e, L25x,L25n,L25xp	12
10610802	LPUBKG67	18G Mindray L12-4S，L12-3E，7L4A，7L4，L14-6NS	12
10610902	LPUBKG68	20-21GMindray L12-4S，L12-3E，7L4A，7L4，L14-6NS	12
10611702	LPUBKG76	18G Philips L12-4(CX30, CX50, Sparq)	12
10611802	LPUBKG77	20-21G Philips L12-4(CX30, CX50, Sparq)	12
